Carbide endmill cutter
3 flutes Flat End Mill
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.
| Code No. |
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
| 3GW1-01003050 | 1 | 3 | 50 | 4 | 3 |
| 3GW1-01504050 | 1.5 | 4 | 50 | 4 | 3 |
| 3GW1-02050500 | 2 | 5 | 50 | 4 | 3 |
| 3GW1-02507050 | 2.5 | 7 | 50 | 4 | 3 |
| 3GW1-03008050 | 3 | 8 | 50 | 4 | 3 |
| 3GW1-04010050 | 4 | 10 | 50 | 4 | 3 |
| 3GW1-04015075 | 4 | 15 | 75 | 4 | 3 |
| 3GW1-04020100 | 4 | 20 | 100 | 4 | 3 |
| 3GW1-05013050 | 5 | 13 | 50 | 6 | 3 |
| 3GW1-06015050 | 6 | 15 | 50 | 6 | 3 |
| 3GW1-06020075 | 6 | 20 | 75 | 6 | 3 |
| 3GW1-06030100 | 6 | 30 | 100 | 6 | 3 |
| 3GW1-06020060 | 8 | 20 | 60 | 8 | 3 |
| 3GW1-08025075 | 8 | 25 | 75 | 8 | 3 |
| 3GW1-08035100 | 8 | 35 | 100 | 8 | 3 |
| 3GW1-010025075 | 10 | 25 | 75 | 10 | 3 |
| 3GW1-010040100 | 10 | 40 | 100 | 10 | 3 |
| 3GW1-012030075 | 12 | 30 | 75 | 12 | 3 |
| 3GW1-012040100 | 12 | 40 | 100 | 12 | 3 |
| 3GW1-014030080 | 14 | 30 | 80 | 14 | 3 |
| 3GW1-014100100 | 14 | 40 | 100 | 14 | 3 |
| 3GW1-016040100 | 16 | 40 | 100 | 16 | 3 |
| 3GW1-018040100 | 18 | 40 | 100 | 18 | 3 |
| 3GW1-020040100 | 20 | 40 | 100 | 20 | 3 |
| 3GW1-06040150 | 6 | 40 | 150 | 6 | 3 |
| 3GW1-08050150 | 8 | 50 | 150 | 8 | 3 |
| 3GW1-010050150 | 10 | 50 | 150 | 10 | 3 |
| 3GW1-012050150 | 12 | 50 | 150 | 12 | 3 |
| 3GW1-014060150 | 14 | 60 | 150 | 14 | 3 |
| 3GW1-016060150 | 16 | 60 | 150 | 16 | 3 |
| 3GW1-018060150 | 18 | 60 | 150 | 18 | 3 |
| 3GW1-020060150 | 20 | 60 | 150 | 20 | 3 |
2. Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc
Introduction of the carbide materials of the End mill
| Carbide Grade | Technical Details of tungsten carbide rod |
| 10U | Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um |
| 12U | Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um |
| K40 | Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um |
| K44 | Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um |
The materials to be cut
| Carbide Grade | HRC of End mill | Materials to be cut |
| 10U | HRC45-50 | For cutting the materials under HRC35 |
| 12U | HRC55-58 | For cutting the materials under HRC50 |
| K40 | HRC60-62 | For cutting the materials under HRC55 |
| K44 | HRC65-70 | For cutting the materials under HRC63 |
Corresponding Coating
| Carbide Grade | HRC of End mill | Corresponding Coating |
| 10U | HRC45-50 | AlTiN |
| 12U | HRC55-58 | TiAlN |
| K40 | HRC60-62 | TiSlN |
| K44 | HRC65-70 | Nano |
Introduction of carbide materials of the End mill
| AlTiN | TiAlN | TiSlN | Nano | |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
3. Coating
Coating |
Color |
Coating Temperature |
Thickness (um) |
HV |
Application Temperature |
Friction coefficient |
TiAlN |
Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
| AlTiN | Black | <600 °C | 3-5 | 3500 | 900 °C | 0.3 |
| TiSiN | Copper | <600 °C | 3-5 | 3500 | 1500 °C | 0.4 |
| NaNo | Blue | <600 °C | 3-5 | 3800 | 1200 °C | 0.4 |
| CrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |

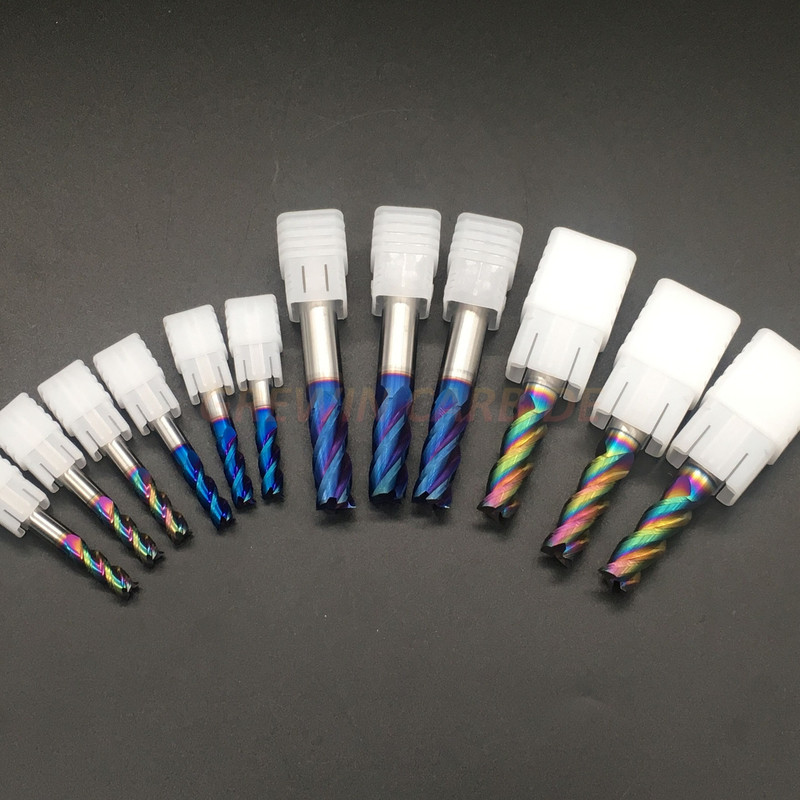

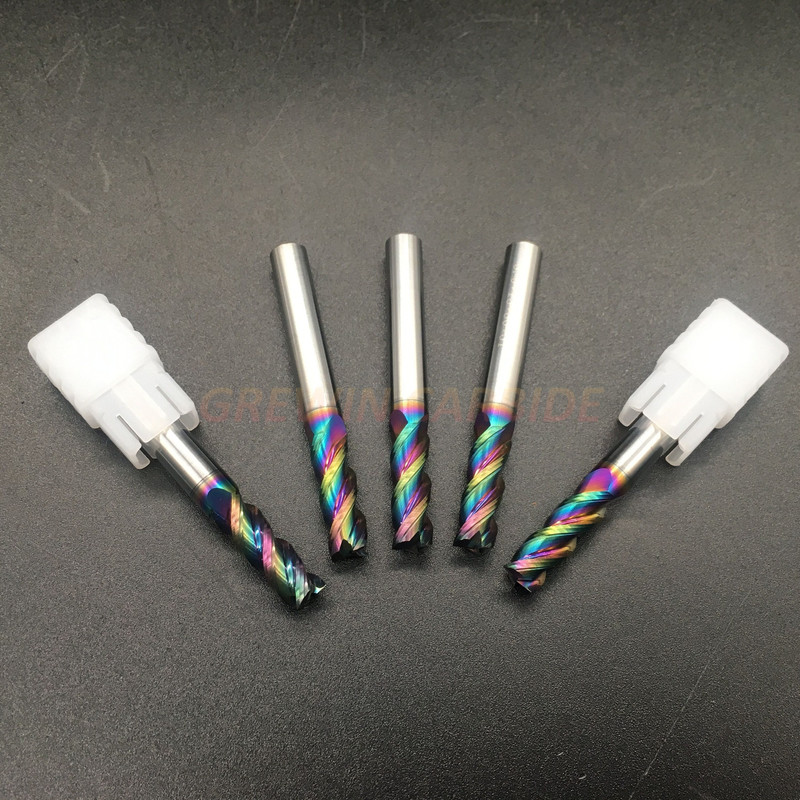

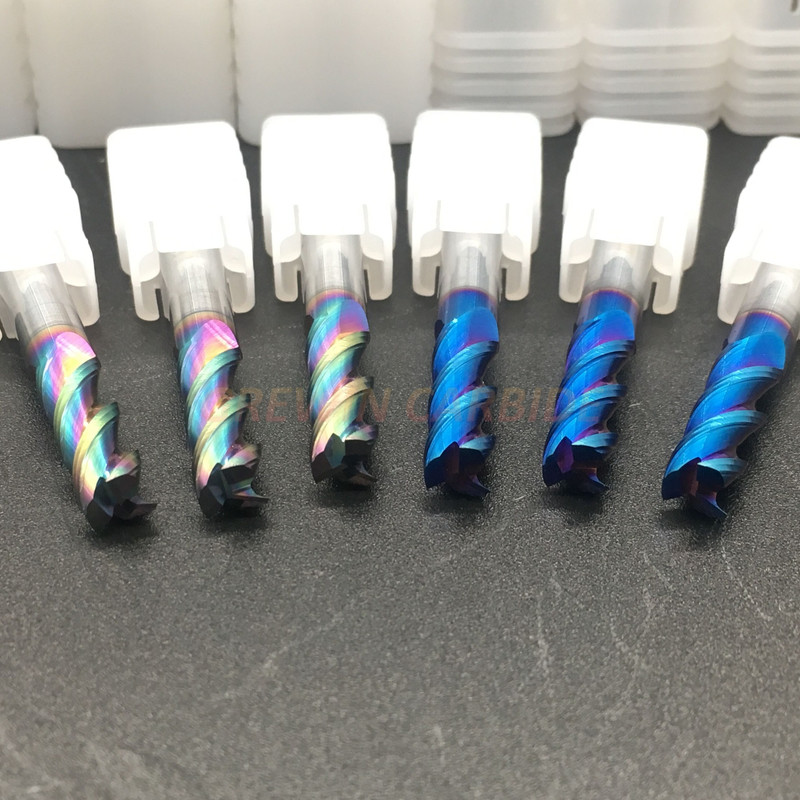

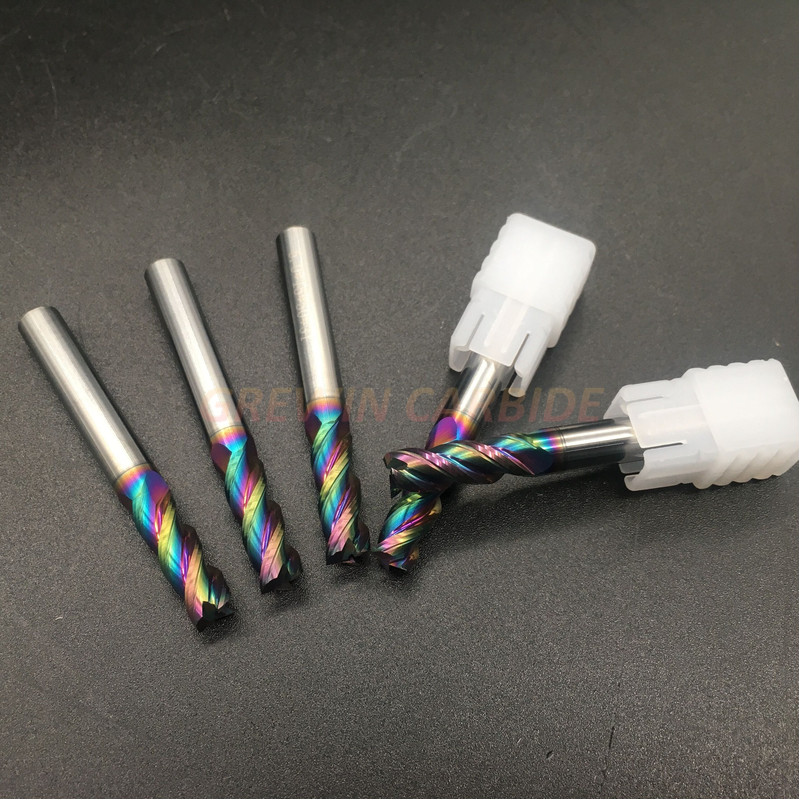

Product Show:
